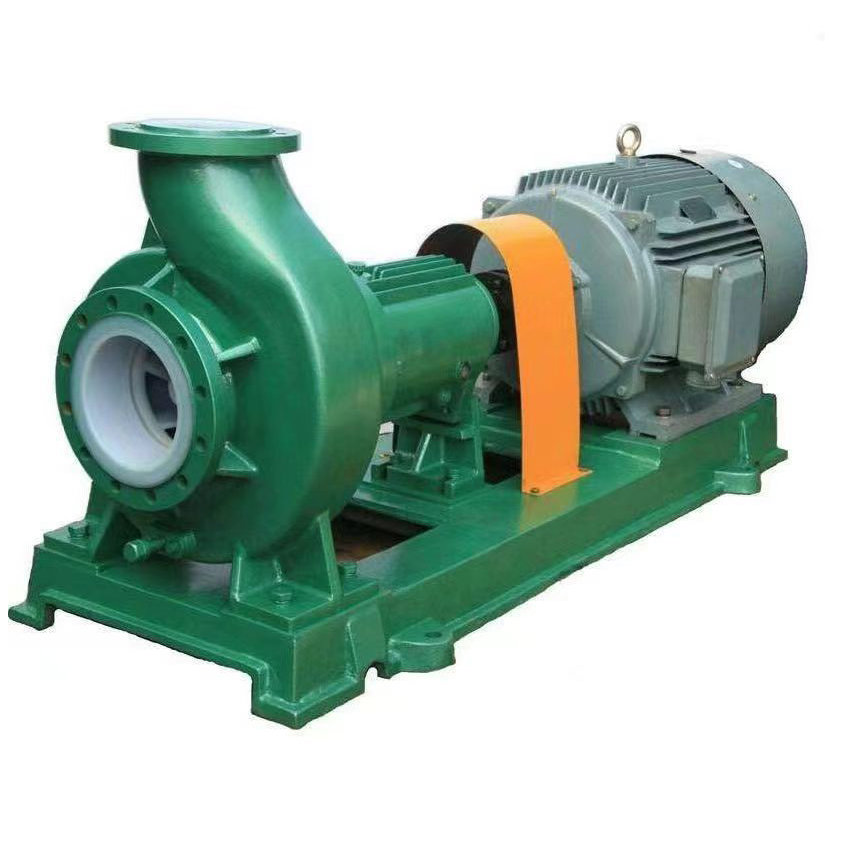

- 商品名稱：IHF襯氟離心泵
- 添加時間：2020-12-01 12:10:28
- 電 話：15955043377
郵 箱：807615200@qq.com
用途usage
IHF型離心泵按照******標準設計，泵機過流部件采用金屬鑲襯聚全氟乙丙烯（F46）燒結壓制成型。其特點是耐腐耐磨密封性能******可靠。本泵適用于輸送任何濃度的硫酸、鹽酸、氫氟酸、王水、強堿、強氧化劑、有機溶劑、還原劑等苛刻條件的強腐蝕性介質，是目前新耐腐蝕裝備之一。輸送介質溫度-20~+150度。
The IHF centrifugal pump is designed in accordance with international standards, and the flow parts of the pump are sintered with metal lined polyperfluorinated ethylene propylene (F46). It is characterized by excellent and reliable corrosion - resistant sealing performance. The pump is suitable for conveying any concentration of sulfuric acid, hydrochloric acid, hydrofluoric acid, aqua aqua, strong alkali, strong oxidant, organic solvent, reducing agent and other harsh conditions of strong corrosive media, is one of the new corrosion resistant equipment. Conveying medium temperature -20~+150 degrees.
性能參數表Performance parameters
規格型號 | 轉速rotate speed (2900r/min) r=1.00 | 轉速rotate speed (1450r/min) r=1 .00 | ||||
流量 rate of flow (m3/h) | 揚程 head (m) | 功率 motor powe (Kw) | 流量 rate of flow (m3/h) | 揚程 head (m) | 功率motor power (kw) | |
IHF40-32-125 | 6 | 20 | 1.5 | 3 | 5 | 0.55 |
IHF40-32-160 | 6 | 32 | 2.2 | 3 | 8 | 0.55 |
IHF40-32-200 | 6 | 50 | 4 | 3 | 12.5 | 0.75 |
IHF40-32-250 | 6 | 80 | 7.5 | 3 | 20 | 1.5 |
IHF50-32-125 | 12.5 | 20 | 2.2 | 6.3 | 5 | 0.55 |
IHF50-32-160 | 12.5 | 32 | 4 | 6.3 | 8 | 0.55 |
IHF50-32-200 | 12.5 | 50 | 7.5 | 6.3 | 12.5 | 1.1 |
IHF50-32-250 | 12.5 | 80 | 11 | 6.3 | 20 | 1.5 |
IHF65-50-125 | 25 | 20 | 3 | 12.5 | 5 | 0.55 |
IHF65-50-160 | 25 | 32 | 5.5 | 12.5 | 8 | 1.1 |
IHF65-40-200 | 25 | 50 | 11 | 12.5 | 12.5 | 1.5 |
IHF65-40-250 | 25 | 80 | 18.5 | 12.5 | 20 | 3 |
IHF80-65-125 | 80 | 20 | 5.5 | 25 | 5 | 1.1 |
IHF80-65-160 | 80 | 32 | 11 | 25 | 8 | 1.5 |
IHF80-50-200 | 80 | 50 | 15 | 25 | 12.5 | 2.2 |
IHF80-50-250 | 80 | 80 | 30 | 25 | 20 | 5.5 |
IHF80-50-315 | 80 | 125 | 37 | 25 | 32 | 7.5 |
IHF100-80-125 | 100 | 20 | 11 | 50 | 5 | 1.5 |
IHF100-80-160 | 100 | 32 | 15 | 50 | 8 | 2.2 |
IHF100-65-200 | 100 | 50 | 30 | 50 | 12.5 | 5.5 |
IHF100-65-250 | 100 | 80 | 45 | 50 | 20 | 7.5 |
IHF100-65-315 | 100 | 125 | 55 | 50 | 32 | 11 |
IHF125-100-160 | 200 | 32 | 30 | 100 | 8 | 5.5 |
IHF125-100-200 | 200 | 50 | 55 | 100 | 12.5 | 11 |
IHF125-100-250 | 200 | 80 | 75 | 100 | 20 | 5.5 |
| IHF125-100-315 | 200 | 125 | 90 | 100 | 32 | 22 |
| IHF150-125-250 | / | / | / | 200 | 20 | 22 |
| IHF150-125-315 | / | / | / | 200 | 32 | 45 |
| IHF150-125-400 | / | / | / | 200 | 50 | 55 |
| IHF200-150-250 | / | / | / | 400 | 20 | 45 |
| IHF200-150-315 | / | / | / | 400 | 32 | 75 |
| IHF200-150-400 | / | / | / | 400 | 50 | 90 |
